Description
2019 Club Car Tempo 4-Passenger Lithium-Ion Passenger Transport Carts
-
Condition: Pre-Owned / Refurbished Fleet Variant
-
Year: 2019 Model Year
-
Make/Brand: Club Car (An Ingersoll Rand / Platinum Equity Brand)
-
Model Line: Tempo Series (Configured with a 4-Passenger Rear-Flip Conversion)
-
Power System: 48-Volt AC Induction Drive with Lithium-Ion Technology
-
Motor/Controller: 4.7 HP (3.5 kW) Continuous AC Motor // 250-Amp Solid-State Vehicle Control Module (VCM)
-
Trim Configuration: Metallic Blue Finish Option // Upgraded Aftermarket Aluminum Alloy Wheels

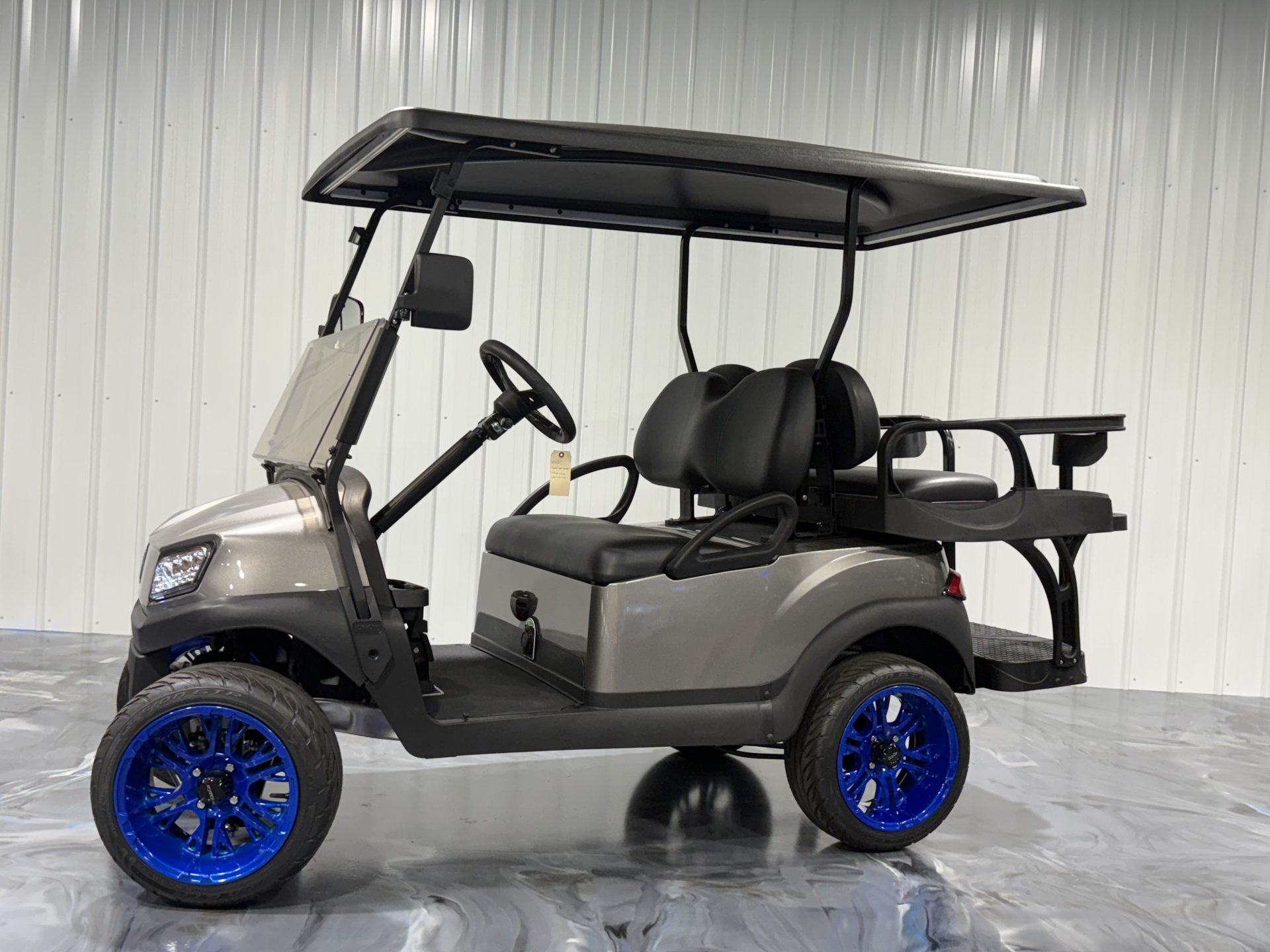

The 2019 Club Car Tempo 4-Passenger Lithium-Ion is a mid-size multi-passenger transport vehicle utilizing an alternating-current (AC) powertrain integrated with high-density automotive-grade lithium cells. This specific configuration features a non-lifted, low-center-of-gravity architectural profile paired with an upgraded custom visual package including a metallic blue body finish and color-coordinated alloy wheel accents. It is designed for residential estate commuting, commercial site logistics, and multi-occupant facility operations.
The vehicle structural core is built on a proprietary AlumiCore™ ladder-style aluminum box-beam frame, preventing oxidation and structural rust common in coastal environments. The body panels consist of high-impact molded-in color or painted TPO on the front cowl and durable Surlyn® polymer coatings across the rear assembly.
Automotive-Grade Lithium & AC Propulsion Infrastructure
AC Induction Motor Efficiency: The lithium variant of the Tempo platform replaces traditional direct-current (DC) series motors with a high-efficiency 4.7 HP AC drive system. This setup retains constant torque output even when carrying a full 4-passenger payload up inclines. The high-frequency powertrain communicates with an automated battery management system (BMS) to regulate cell temperatures and balance charging cycles.
-
Zero-Maintenance Battery Integration: Powered by a sealed 3.1 kW or 3.6 kW stored energy Lithium-Ion pack. The configuration completely removes the requirement for routine water replenishment, terminal terminal cleaning, or acid neutralisation procedures.
-
Chassis Weight Reduction: The lithium battery pack reduces total vehicle mass by approximately 93 kg compared to an equivalent lead-acid configuration. This reduction lowers structural stress on the suspension and minimizes ground pressure to prevent turf compaction.
-
Braking & Steering Geometry: Built with self-adjusting, rear-wheel mechanical drum brakes linked to a foot-operated, multi-lock parking brake pedal. Steering control is managed via a SportDrive™ self-compensating double-reduction helical rack-and-pinion assembly.
Key Specifications & Technical Profile
| Feature Category | Factory Technical Specification Profile |
| Seating Layout | 4-Passenger (Fixed Front Bench + 2+2 Rear Flip Seat Station) |
| Chassis Framework | AlumiCore™ Rustproof Structural Aluminum Box Beam |
| Powertrain Type | 48-Volt Alternating Current (AC) Induction Drive |
| Energy Capacity | 3.6 kW Stored Energy Lithium Battery Pack with Smart BMS |
| Charging Hardware | 650W Automated High-Frequency Off-Peak Charging System |
| Acceleration Modes | Two Programmable Settings: Traditional or Aggressive |
| Ground Speed Range | Configurable from 8 km/h to a maximum of 30 km/h (19 mph) |
| Front Wheel Suspension | Independent Leaf Spring with Dual Hydraulic Shock Absorbers |
| Wheel & Tire Layout | Upgraded Aftermarket Sport Alloy Wheels with Low-Profile Tires |
Dimensions & Cabin Equipment Matrix
1. Physical Footprint with 4-Seat Conversion
-
Total Longitudinal Length: 289 cm (114.0 inches) with rear footrest bracket installed
-
Total Transverse Width: 120 cm (47.2 inches)
-
Total Height (With Standard Canopy): 174 cm (68.5 inches) to the top of the roof track
-
Wheelbase Length: 166.4 cm (65.5 inches)
-
Ground Clearance: 11.4 cm (4.5 inches) measured at the rear axle differential
-
Total Vehicle Curb Weight: 325.7 kg (718 lbs) with sealed lithium core installed
-
Turning Circle Radius: 5.28 meters (17 feet 4 inches)
2. Body Finish & Specialized Trim Elements
-
Exterior Color Specification: Factory or premium aftermarket metallic blue automotive-grade paint applied over high-impact Thermoplastic Polyolefin (TPO) sub-straits.
-
Wheel and Tire Assemblies: Outfitted with custom-machined multi-spoke aluminum alloy wheels containing custom blue-colored spoke inserts or color-matched center caps, mounted with 4-ply street-rated tread profiles.
-

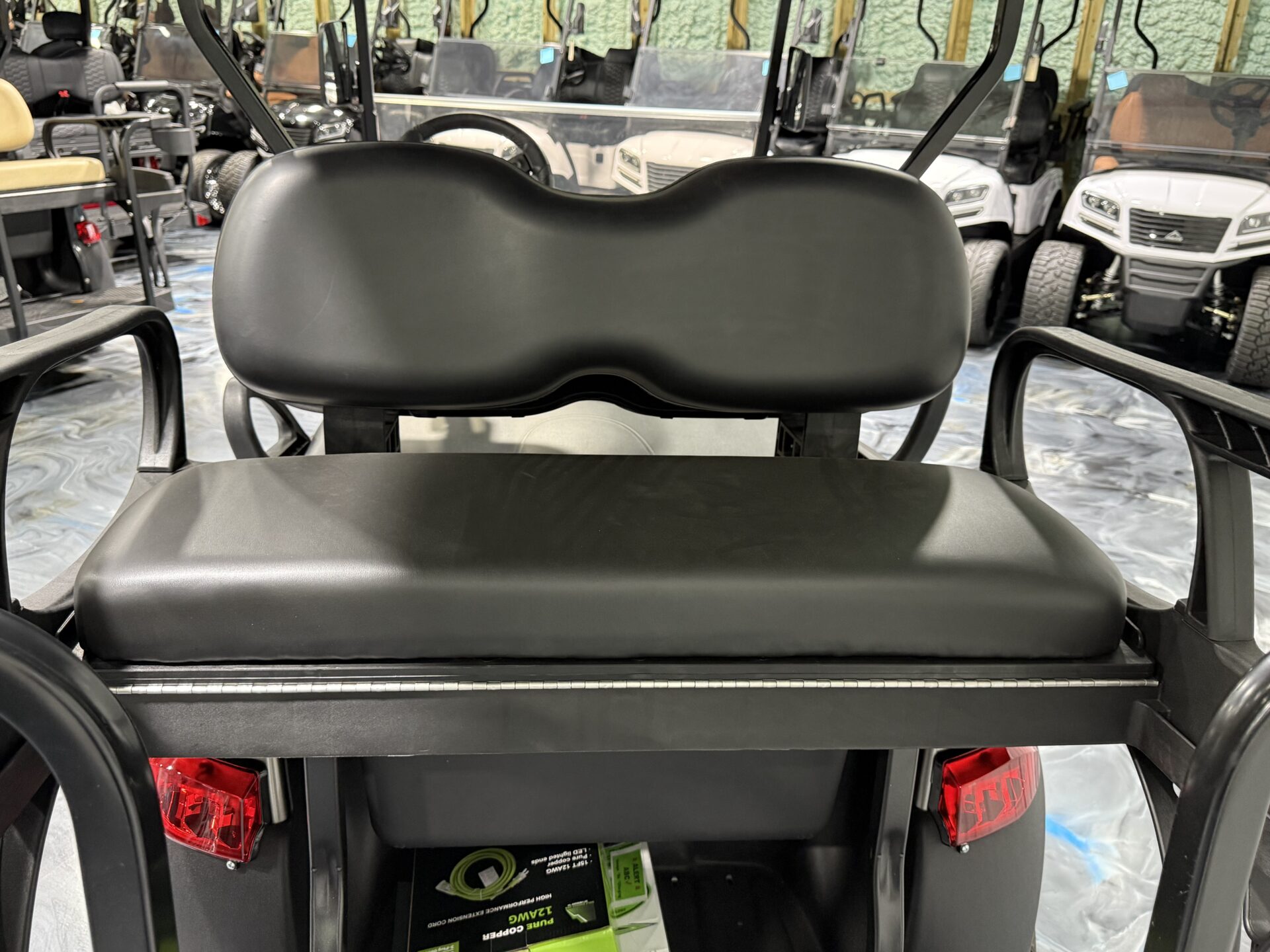

Rear Conversional Utility Tray: The secondary passenger row features dual marine-grade vinyl cushions with integrated armrests. The seat frame hinges forward 180 degrees to lay flat, creating a heavy-duty composite utility cargo platform with a raised containment lip for material transit.
-

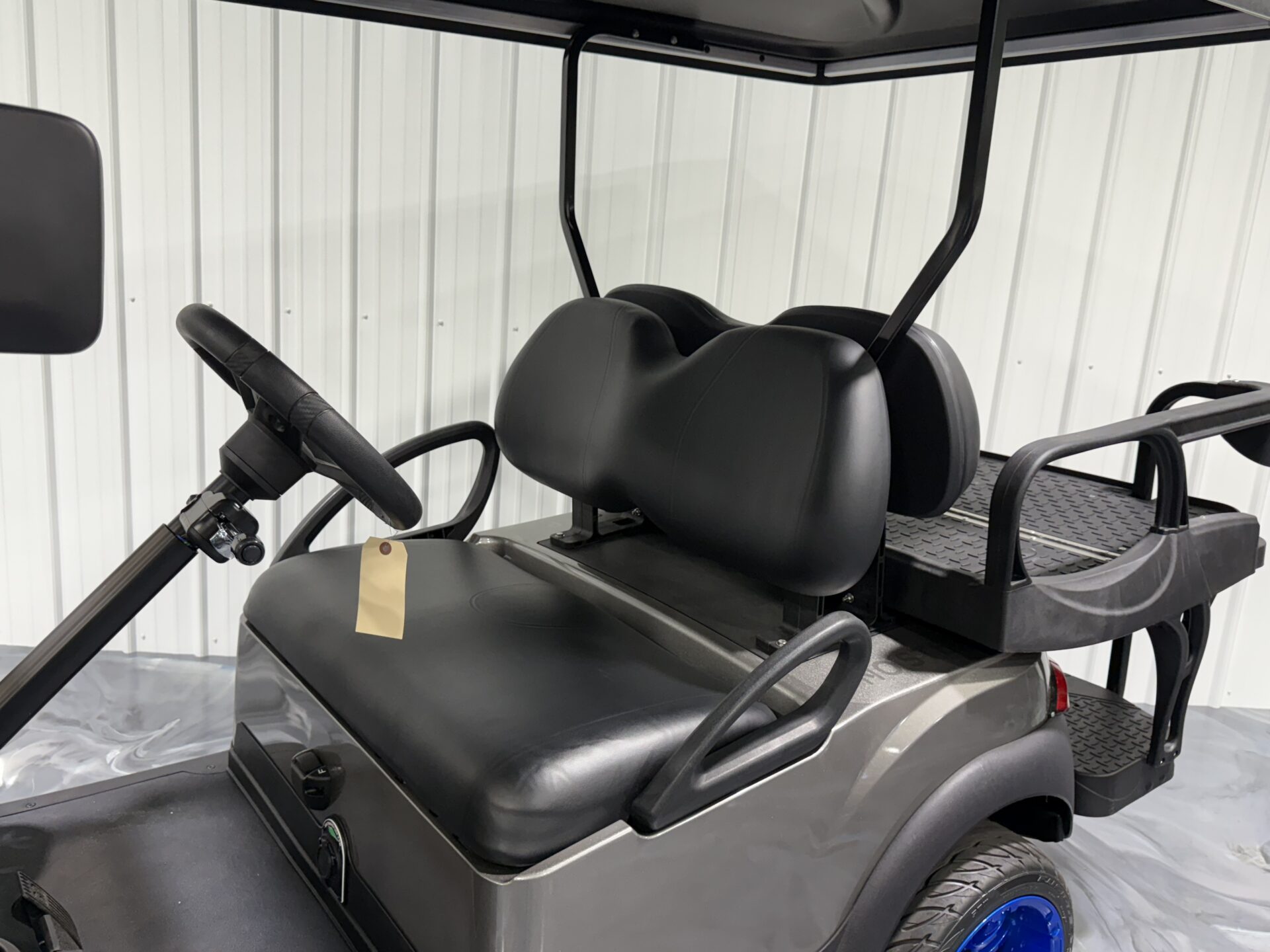

Console Layout & Electronics: Features an automotive-styled dash with an integrated key switch, dual USB Type-A charging ports, deep left/right storage pockets, and centralized drink holders.
-
Canopy and Weather Shielding: Fitted with a dual-walled sun canopy containing built-in multi-point horizontal water drainage channels, paired with a tinted, impact-resistant acrylic split-folding front windshield assembly.
Operational Lifespan & Power Performance
The 2019 Club Car Tempo 4-Passenger Lithium-Ion is a highly optimized platform for multi-passenger transit. The combined application of an un-lifted aluminum chassis, a low-maintenance lithium pack, and upgraded sport styling elements balances institutional utility with estate aesthetics.
