Description
2026 Evolution D5 Maverick 4-Passenger Passenger Transport Cart
-
Website: https://golfcartforsale.co.za/
-
Condition: New
-
Year: 2026 Model Year
-
Make/Brand: Evolution Electric Cart
-
Model Line: D5 Series – Maverick 4-Passenger Configuration
-
Power System: 48-Volt High-Output Alternating Current (AC) Electric Drive
-
Energy Storage: 48V 110Ah Sealed Lithium-Ion Battery System with Mobile App Monitoring
-
Drive Mechanicals: Direct-Drive Transaxle with High-Torque Rear End and Electromagnetic Brake

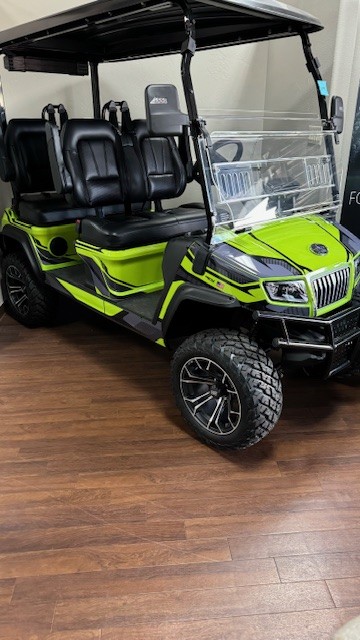

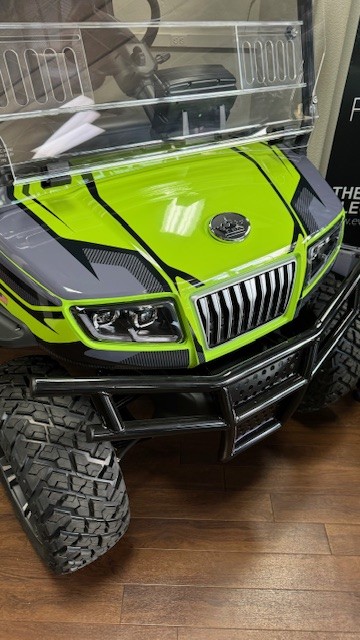

The 2026 Evolution D5 Maverick 4-Passenger is an upgraded, factory-lifted personal transportation vehicle operating on a 48-Volt AC electric powertrain. The 2026 Maverick variant features an aggressive off-road stance incorporating standard brush guards, running boards, fender flares, and heavy-duty 14-inch alloy wheels with specialized silent-tread off-road tires.

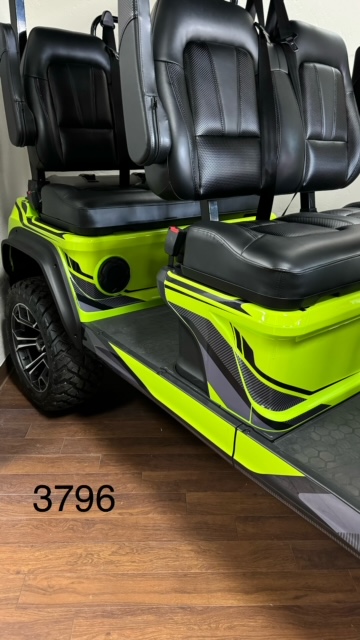

The vehicle structural core consists of an automotive-grade steel chassis treated with a complete multi-stage anti-corrosive E-coat primer layer. Outer body sections are built from injection-molded, UV-stabilized Thermoplastic Polyolefin (TPO) panels. The cabin layout utilizes two rows of forward-facing seats, or a 2+2 combination depending on structural regional variations, equipped with multi-row safety restraints and rear structural trunk storage.
Lithium-Ion AC Powertrain & Electronic Governance
Integrated AC Motor & Electronic Braking: The 2026 Maverick operates via a 6.3 kW continuous-rated AC induction motor managed by a 400-Amp AC controller. Drivetrain braking relies on an automated Electromagnetic (EM) Brake system. The EM system engages automatically when the accelerator pedal is fully released, securing the vehicle position on variable gradients without a traditional mechanical handbrake lever.
-
Smart Lithium Battery Architecture: Equipped with a 48V 110Ah lithium-ion battery pack containing an integrated central Battery Management System (BMS). The BMS balances internal cells and monitors real-time thermal parameters. The system supports direct data casting via a mobile live-monitor application.
-
Charging Unit: Integrated with an onboard 25-Amp smart fast charger running via a standard household power input. Complete exhaustion-to-charge cycle recovery requires 4 to 5 hours.
-
Speed Control Interface: Features a physical dash-mounted High/Low speed management toggle switch, a Master ON/OFF mechanical key switch, and a centralized rotary gear selector dial.
Key Specifications & Technical Profile
| Feature Category | Factory Technical Specification Profile |
| Seating Configuration | 4-Passenger (Forward-Facing and Integrated Multi-Row Layouts) |
| Chassis Framework | Automotive-Grade Structural Steel with Full E-coat Anti-Rust Substrate |
| Motor Classification | 6.3 kW (8.4 HP) Alternating Current (AC) Induction Motor |
| Controller Profile | 400-Amp AC Controller Unit |
| Battery Chemistry | Maintenance-Free 48V 110Ah Lithium-Ion (Li-Ion) |
| Maximum Ground Speed | Factory Calibrated up to 40 km/h (25 mph) |
| Suspension Geometry | Front: Double Wishbone Independent // Rear: Tapered Leaf Springs with Hydraulic Shocks |
| Wheel & Tire Setup | 14 x 7-inch Aluminum Alloy Rims // 23 x 10-14 Silent Off-Road Tread Tires |
Dimensions & Digital Cabin Equipment
1. Physical Footprint & Weight Metrics
-
Total Longitudinal Length: 300.0 cm (118.1 inches)
-
Total Transverse Width: 141.8 cm (55.8 inches)
-
Total Height: 211.0 cm (83.1 inches) to top of canopy assembly
-
Wheelbase Distance: 205.0 cm (80.7 inches)
-
Track Width: 92.5 cm (Front and Rear track alignments are symmetrical)
-
Maximum Gross Vehicle Weight (G.V.W.R.): 807 kg (1,780 lbs)
2. Digital Instrumentation & Electronics Layout
-
9-Inch Multi-Functional Touchscreen Console: Embedded into the center dashboard to project real-time speed, battery state-of-charge (SOC), driving gear allocation (Forward, Neutral, Reverse), odometer statistics, and full display output from the standard rear-view backup camera.
-
Audio and Communication Equipment: Factory-installed Cuboid Evolution Bluetooth soundbar mounted to the upper structural canopy rail. Includes integrated LED rhythm illumination, a built-in media interface player, and a dashboard-routed microphone for hands-free cellular calling.
-
Power Distribution Ports: Equipped with dual USB charging ports integrated into the front glovebox compartments, additional ports within the rear seat back frames, and a centralized 12-Volt auxiliary power outlet.
3. Cabin Infrastructure & Structural Accessories
-
Adjustable Control Columns: Equipped with an automotive-style adjustable tilting steering column to modify steering wheel angle.
-
Occupant Restraints & Seating: Factory-fitted 3-point adjustable safety belts installed across all four seating positions. Seats consist of two-tone marine-grade luxury vinyl with 90-degree rotatable armrests.
-
Aero Ventilation Windshield: Foldable clear acrylic windshield system incorporating dual lower slidable sub-windows to manage internal air currents.
-
Storage Engineering: Features a standard hardshell rear storage trunk capsule integrated into the back section, alongside divided front dashboard gloveboxes and specialized seat-back storage pockets.
-
External Illumination Profile: Full LED array including high/low beam headlights, daytime running lights, taillights, brake lights, and side-view mirrors with integrated LED turn indicator repeaters.
Maintenance Cycles & Fleet Serviceability
The 2026 Evolution D5 Maverick utilizes solid-state electrical management to completely eliminate specialized battery maintenance routines, such as water-topping or terminal descaling. Regular maintenance protocols are limited to cleaning the chassis structure, monitoring front suspension bushing grease points, checking the differential lubricant levels, and conducting routine tire pressure monitoring.
