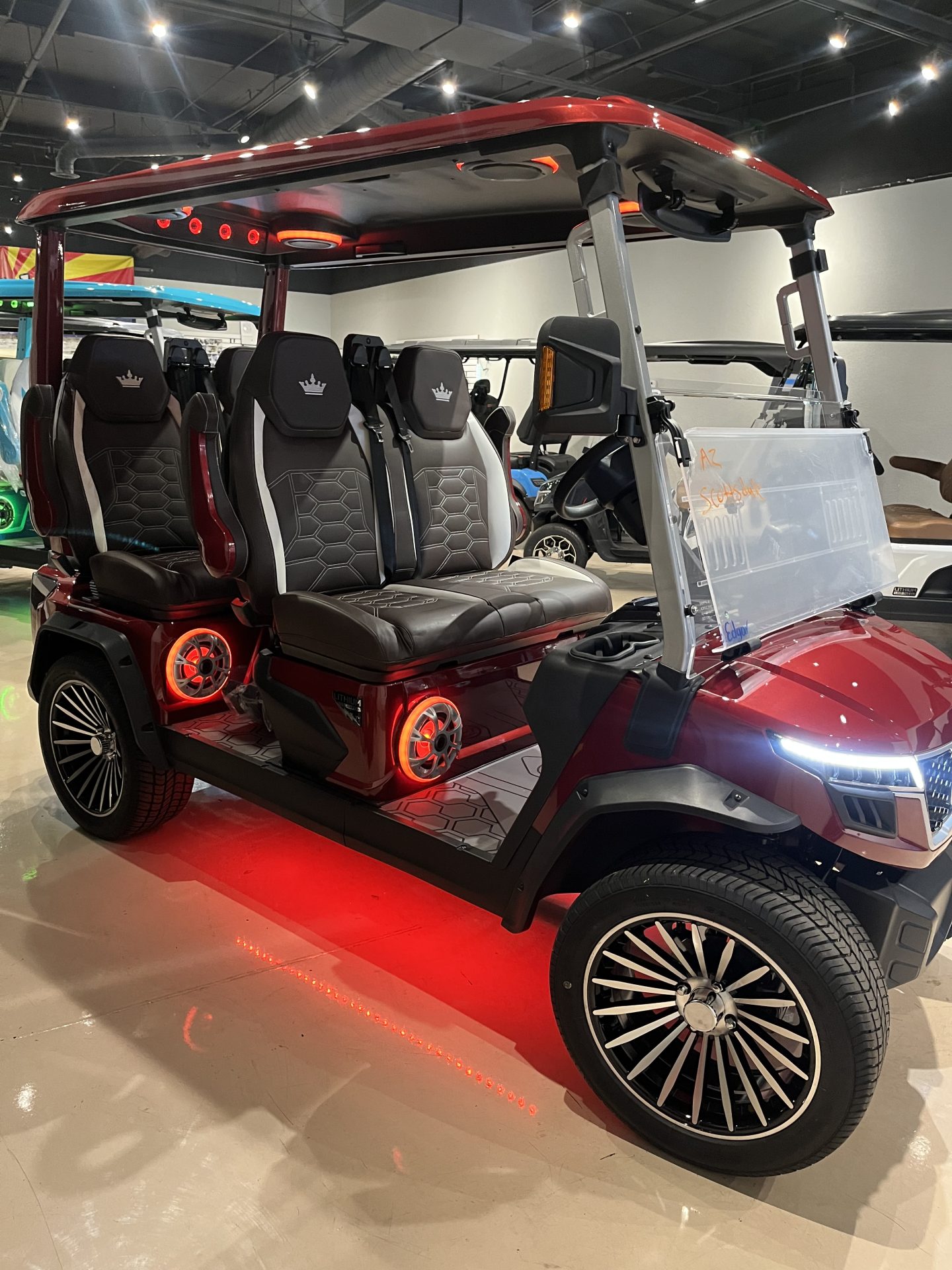

2025 Evolution D-MAX GT4 4-Passenger Passenger Transport CART
-
Condition: Factory New / Current Generation High-Specification Layout
-
Year: 2025 Model Year
-
Make/Brand: Evolution Electric Vehicles
-
Model Line: D-MAX Series – GT4 Configuration
-
Power System: 48-Volt High-Output Alternating Current (AC) Electric Drive
-
Energy Storage: 48V Sealed Lithium-Ion Battery System with Smart Management
-
Drive Mechanicals: Direct-Drive Transaxle with High-Torque Rear End and Electromagnetic Brake
The 2025 Evolution D-MAX GT4 is a forward-facing, 4-passenger personal transport CART operating on a 48-Volt AC electric powertrain. The GT4 configuration is engineered with an advanced technological profile, utilizing large-diameter 16-inch aluminum wheels, radial road tires, and an independent front suspension system.
The structural foundation of this CART relies on an automotive-grade steel chassis protected by a multi-stage anti-corrosive E-coat and powder-coated layer. The exterior body sections are built from injection-molded, UV-stabilized Thermoplastic Polyolefin (TPO) panels. The cabin layout accommodates four passengers in a forward-facing format, complete with integrated safety restraints, a comprehensive digital dash panel, and dedicated utility storage structures.
Lithium-Ion AC Powertrain & Electronic Governance
Integrated AC Motor & Automated Brake Control: The 2025 D-MAX GT4 functions via a 6.3 kW continuous-rated AC induction motor managed by a 400-Amp AC controller unit. Drivetrain safety utilizes an integrated Electromagnetic (EM) Brake system. This mechanism engages automatically to lock the drivetrain when the accelerator pedal is fully released, securing the CART position on gradients without requiring a manual mechanical lever.
-
Smart Lithium Battery Architecture: Powered by a 48V lithium-ion battery pack monitored by a central Battery Management System (BMS). The BMS balances internal cells and regulates thermal parameters. The manufacturer provides a standard 8-year structural warranty on the lithium cell assembly.
-
Onboard Charging Infrastructure: Built with an integrated 25-Amp onboard smart charging unit that connects directly to a standard domestic household electrical outlet. Complete depletion-to-recharge cycle recovery requires less than or equal to 6 hours.
-
Speed Control Interface: Features a physical dash-mounted High/Low speed management toggle switch, a Master ON/OFF mechanical key switch, and steering-wheel-mounted control arrays.
Key Specifications & Technical Profile
| Feature Category | Factory Technical Specification Profile |
| Seating Configuration | 4-Passenger (Forward-Facing Multi-Row Layout) |
| Chassis Framework | Automotive-Grade Steel with Full E-coat and Powder Coating |
| Motor Classification | 6.3 kW Alternating Current (AC) Induction Motor |
| Controller Profile | 400-Amp AC Electronic Controller Unit |
| Battery Chemistry | Maintenance-Free 48V Lithium-Ion (Li-Ion) |
| Maximum Ground Speed | Factory Calibrated up to 40 km/h (25 mph) |
| Maximum Gradability | 25% Incline Angle Under Full Load Capacity |
| Suspension Geometry | Front: Double Wishbone Independent // Rear: Leaf Spring Suspension with Hydraulic Shocks |
| Braking Hardware | Hydraulic Disc Braking System with Regenerative Energy Recovery |
| Wheel & Tire Setup | 16 x 7-inch Aluminum Alloy Wheels // 225/45R16 Radial Road Tires |
Dimensions & Specialized Cabin Equipment
1. Physical Footprint & Weight Metrics
-
Total Longitudinal Length: 302.0 cm (118.9 inches)
-
Total Transverse Width: 142.5 cm (56.1 inches including mirrors)
-
Total Height: 212.6 cm (83.7 inches) down to ground plane
-
Wheelbase Distance: 205.0 cm (80.7 inches)
-
Front Wheel Track Width: 99.0 cm (39.0 inches)
-
Rear Wheel Track Width: 99.5 cm (39.1 inches)
-
Braking Distance Metric: Less than or equal to 3.0 meters (9.84 feet)
-
Curb Weight (Unloaded): 570 kg (1,256.6 lbs)
-
Maximum Total Mass (G.V.W.R.): 920 kg (2,028 lbs)
2. Digital Dashboard & Electronics Integration
-
10.1-Inch Multi-Functional Touchscreen Interface: Center-mounted digital console providing Apple CarPlay and Android Auto compatibility, radio tuning, speedometer data, real-time lithium state-of-charge (SOC) metrics, and automated video output from the standard rear backup camera.
-
Integrated Communication & Audio: Features a roof-mounted surround-sound speaker system and a dual soundbar running Bluetooth audio streaming, media player inputs, and an integrated microphone for hands-free cellular pairing.
-
Auxiliary Power Outlets: Integrated dual wireless mobile phone charging pads built directly into the front dashboard console, alongside standard USB ports and cup holders.
3. Trim Outfitting & Storage Utility
-
Adjustable Steering Assembly: Fitted with an adjustable tilting steering column and an ergonomic steering wheel containing integrated secondary controls.
-
Seating Craftsmanship: Marine-grade weather-resistant high-back vinyl seats utilizing contoured thigh support, 90-degree rotating armrests, and seat back cover assemblies with cup holders.
-
Integrated Refrigerator Box: Features a dedicated, built-in cold storage refrigerator compartment embedded within the dashboard frame assembly.
-
External Illumination Profile: Complete LED light array incorporating high/low beam headlights, daytime running lights, rear taillights, and side-view mirrors with integrated LED turn indicators.
-
Storage Profiles: Rear slide-out tray equipped with a wheeled, portable 70-Litre cooler box. Features a concealed, foldable rear cargo basket with a collapsible utility box, plus a detachable dual golf bag holder extension capable of carrying up to four golf bags.
Maintenance Profile & Long-Term Serviceability
The 2025 Evolution D-MAX GT4 leverages solid-state electronics and a sealed lithium chemistry to lower regular mechanical service windows. It eliminates traditional flooded lead-acid battery labor routines, completely avoiding water-topping cycles, terminal post descaling, and accidental acid damage to the steel chassis. Service requirements for this CART are restricted to structural washing, tire wear tracking, front independent suspension grease joint inspection, and differential lubricant checks.
