Description
2023 Evolution D5 Maverick 2+2 Passenger Cart
-
Condition: Pre-Owned / Modern High-Specification Lifted Inventory
-
Year: 2023 Model Year
-
Make/Brand: Evolution Electric Vehicles
-
Model Line: D5 Series – Maverick 2+2 Configuration
-
Power System: 48-Volt High-Output Alternating Current (AC) Electric Drive
-
Energy Storage: 48V 110Ah Sealed Lithium-Ion Battery Pack
-
Drive Mechanicals: Direct-Drive Transaxle with High-Torque Rear End and Electromagnetic Brake

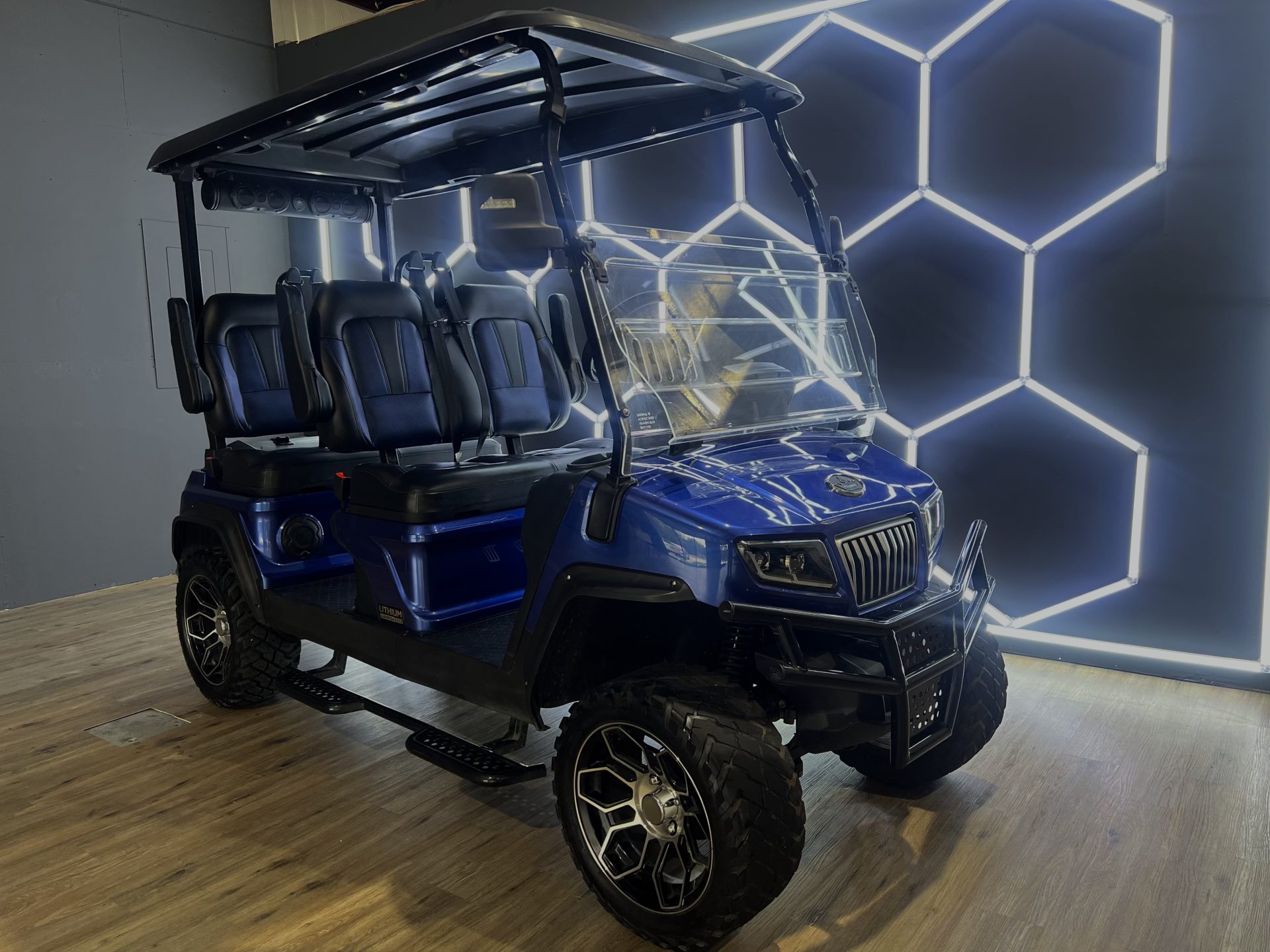

The 2023 Evolution D5 Maverick 2+2 is a lifted, 4-passenger personal transportation vehicle operating on a 48-Volt AC electric powertrain. The Maverick edition is explicitly engineered with a ruggedized off-road profile, utilizing oversized wheels, specialized silent-tread off-road tires, and an independent front suspension system.
The structural foundation relies on an automotive-grade steel chassis coated with an anti-corrosive E-coat primer layer. The outer shell is constructed from injection-molded, UV-stabilized thermoplastic panels. The 2+2 seating arrangement features two forward-facing luxury seats and a integrated rear-facing seat station fitted with factory safety handrails, storage pockets, and dedicated passenger amenities.
Lithium-Ion AC Powertrain & Electronic Control Layout
Integrated AC Motor & Electromagnetic Braking: The 2023 Maverick operates via a 6.3 kW continuous-rated AC induction motor paired with a 400-Amp AC controller. The system functions without mechanical brake cables; instead, it utilizes an automated Electromagnetic (EM) Parking Brake that locks the drivetrain automatically whenever the vehicle comes to a complete standstill, preventing unintended rolling on gradients.
-
Lithium Battery Architecture: Powered by a 48V 110Ah lithium-ion battery pack managed by an onboard central Battery Management System (BMS). The BMS balances internal cells, regulates thermal levels, and manages electrical draw during peak acceleration.
-
Onboard Charging System: Equipped with an integrated 25-Amp smart onboard charger running via a standard household electrical plug. Full depletion-to-charge completion takes approximately 4 to 5 hours.
-
Drivetrain Adaptability: Features a dash-mounted High/Low speed mode selection knob alongside a Master ON/OFF mechanical key switch to regulate maximum power output based on environment constraints.
Key Specifications & Technical Profile
| Feature Category | Factory Technical Specification Profile |
| Seating Allocation | 4-Passenger (2 Forward-Facing + 2 Rear-Facing) |
| Chassis Framework | Automotive-Grade Structural Steel with Complete E-coat Anti-Rust Treatment |
| Motor Classification | 6.3 kW (8.4 HP) Alternating Current (AC) Induction Motor |
| Controller Profile | 400-Amp AC Controller System |
| Battery Chemistry | Maintenance-Free 48V 110Ah Lithium-Ion (Li-Ion) |
| Maximum Ground Speed | Factory Calibrated up to 40 km/h (25 mph) |
| Suspension Geometry | Front: Double Wishbone Independent // Rear: Heavy-Duty Leaf Springs with Hydraulic Shocks |
| Wheel & Tire Setup | 14 x 7-inch Aluminum Alloy Wheels // 23 x 10-14 Silent Off-Road Tread Tires |
Dimensions & Digital Cabin Equipment
1. Physical Footprint & Weight Profiles
-
Total Longitudinal Length: 300.0 cm (118.1 inches)
-
Total Transverse Width: 141.8 cm (55.8 inches)
-
Total Height: 211.0 cm (83.1 inches) down to ground plane
-
Wheelbase Distance: 205.0 cm (80.7 inches)
-
Track Width: 92.5 cm (Front and Rear axles match)
-
Maximum Gross Vehicle Weight (G.V.W.R.): 797 kg (1,757 lbs)
2. Digital Instrumentation & Integrated Electronics
-

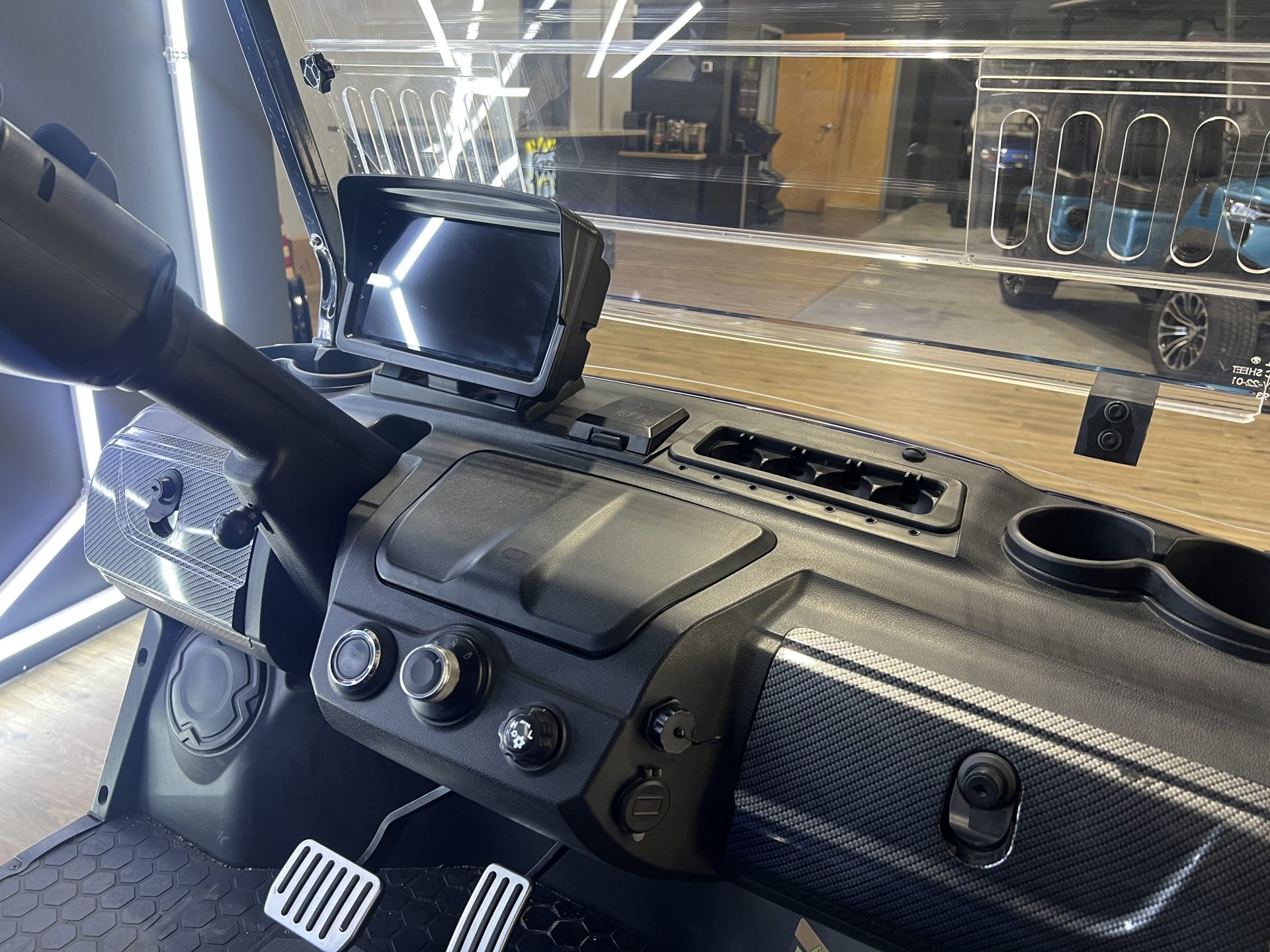

9-Inch Multi-Functional Touchscreen Display: The dashboard features a centralized 9-inch digital command console displaying real-time speed, gear selection (Forward, Neutral, Reverse), odometer data, light activation status, and a live video feed from the integrated rear backup camera.
-
Integrated Communications: Built-in Bluetooth connectivity module, media player, hands-free call microphone routing, and a factory-fitted Cuboid Evolution soundbar with integrated lighting.
-
Auxiliary Power Connections: Fitted with a standard 12-Volt power outlet alongside dual USB charging ports inside the dashboard gloveboxes and within the rear seat back assembly.
3. Cabin Amenities & Safety Restraints
-
Occupant Safety Systems: Standard factory-installed 3-point adjustable safety belts provided for all four seating positions. Rear-view side mirrors feature integrated LED turn signal indicator lamps.
-

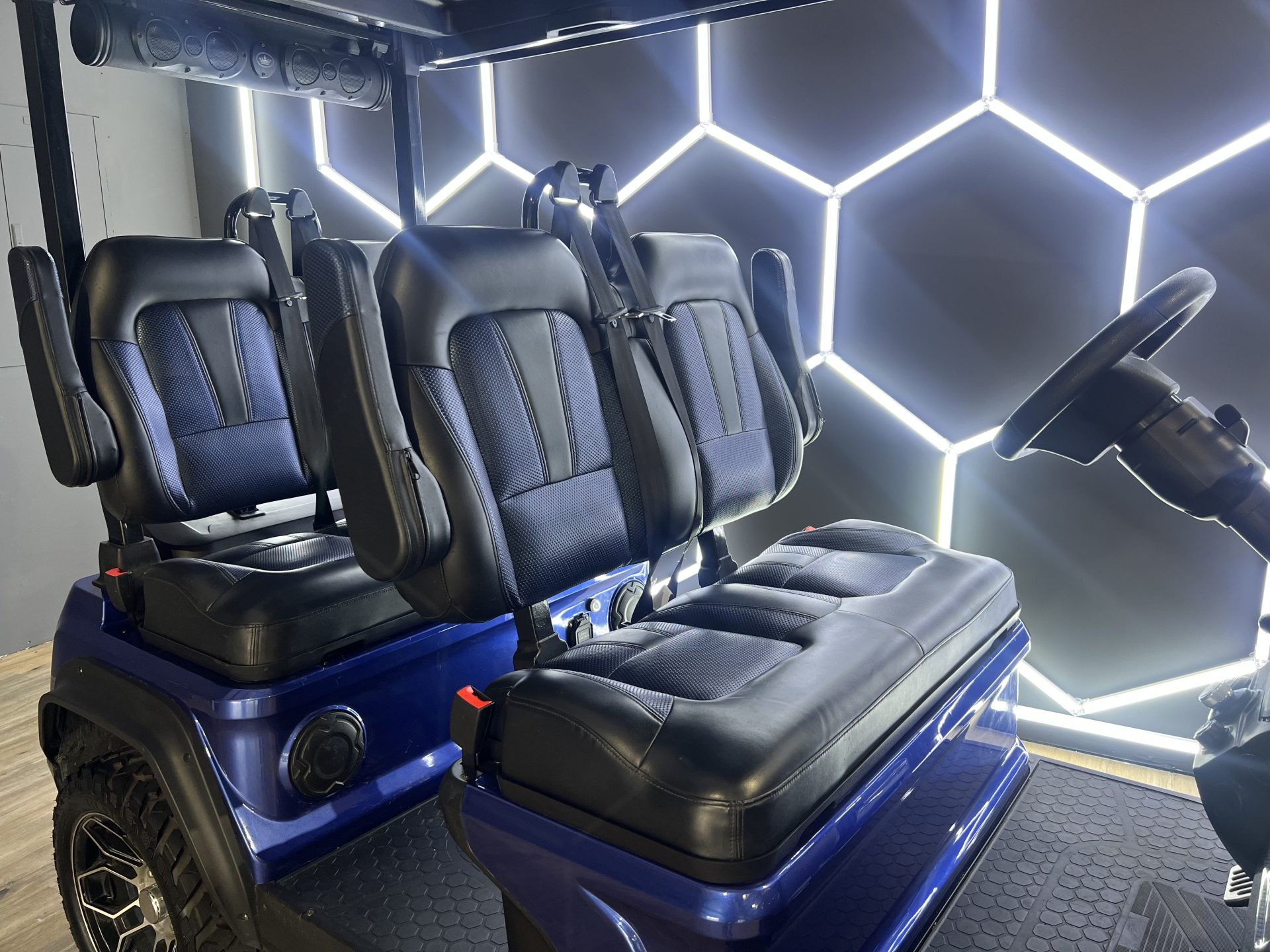

Luxury Seating Elements: Two-tone luxury marine-grade vinyl seats equipped with 90-degree rotatable armrests on the front row.
-
Windshield Assembly: Foldable, impact-resistant clear acrylic windshield containing dual slidable sub-windows for ventilation control.
-
Storage Profiles: Divided front dashboard compartments, under-seat storage bins, and a dedicated rear storage compartment integrated into the rear platform structure.
Maintenance Profile & Long-Term Serviceability
The 2023 Evolution D5 Maverick 2+2 utilizes modern solid-state technology to lower general service intervention needs. The elimination of liquid-electrolyte lead-acid batteries means zero water-topping protocols, zero corrosion on electrical lines, and reduced overall weight. Mechanical servicing requirements are primarily confined to front independent suspension bushing lubrication, checking differential gear oil levels, and inspecting tire inflation parameters.
