Description

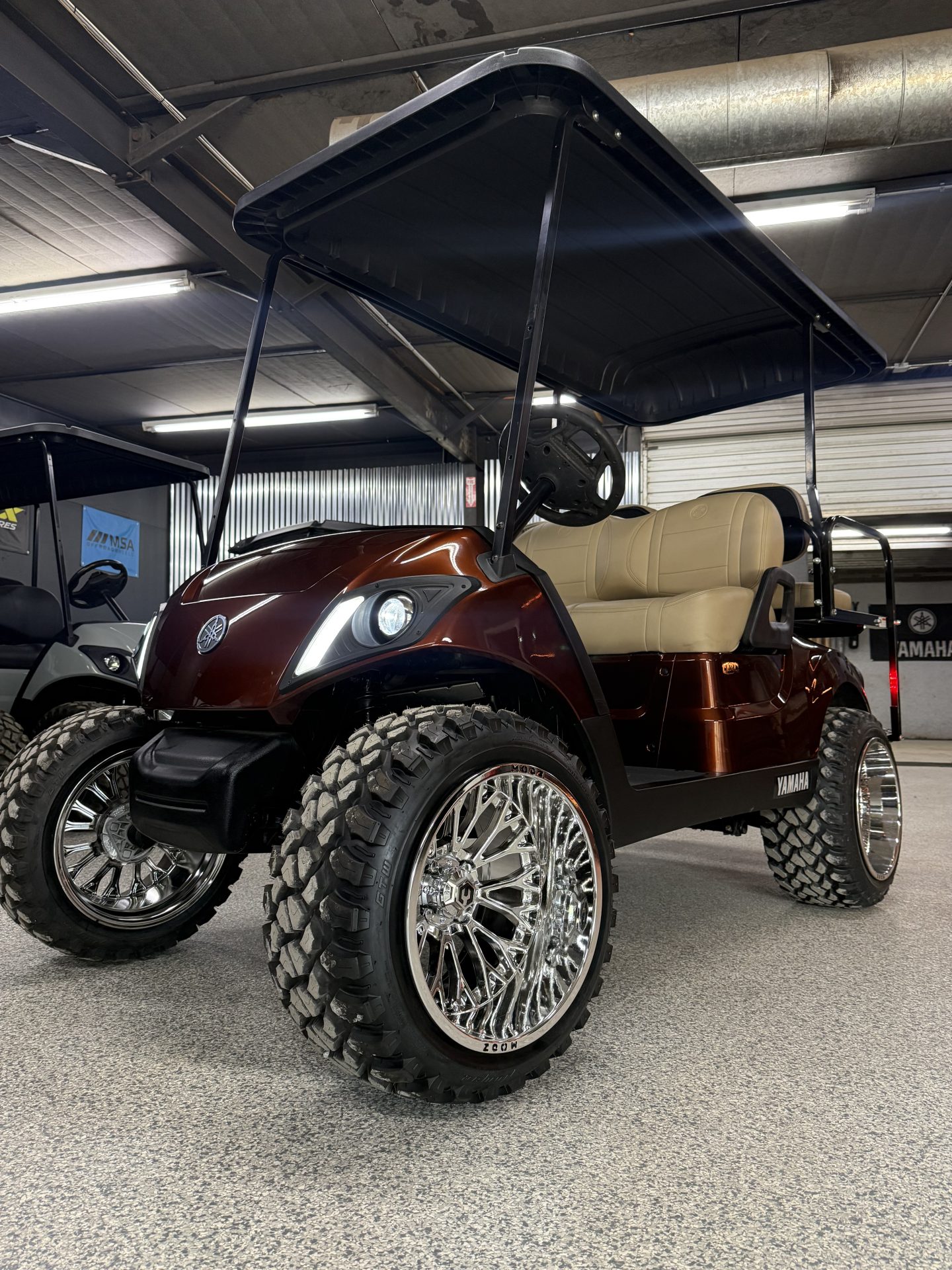

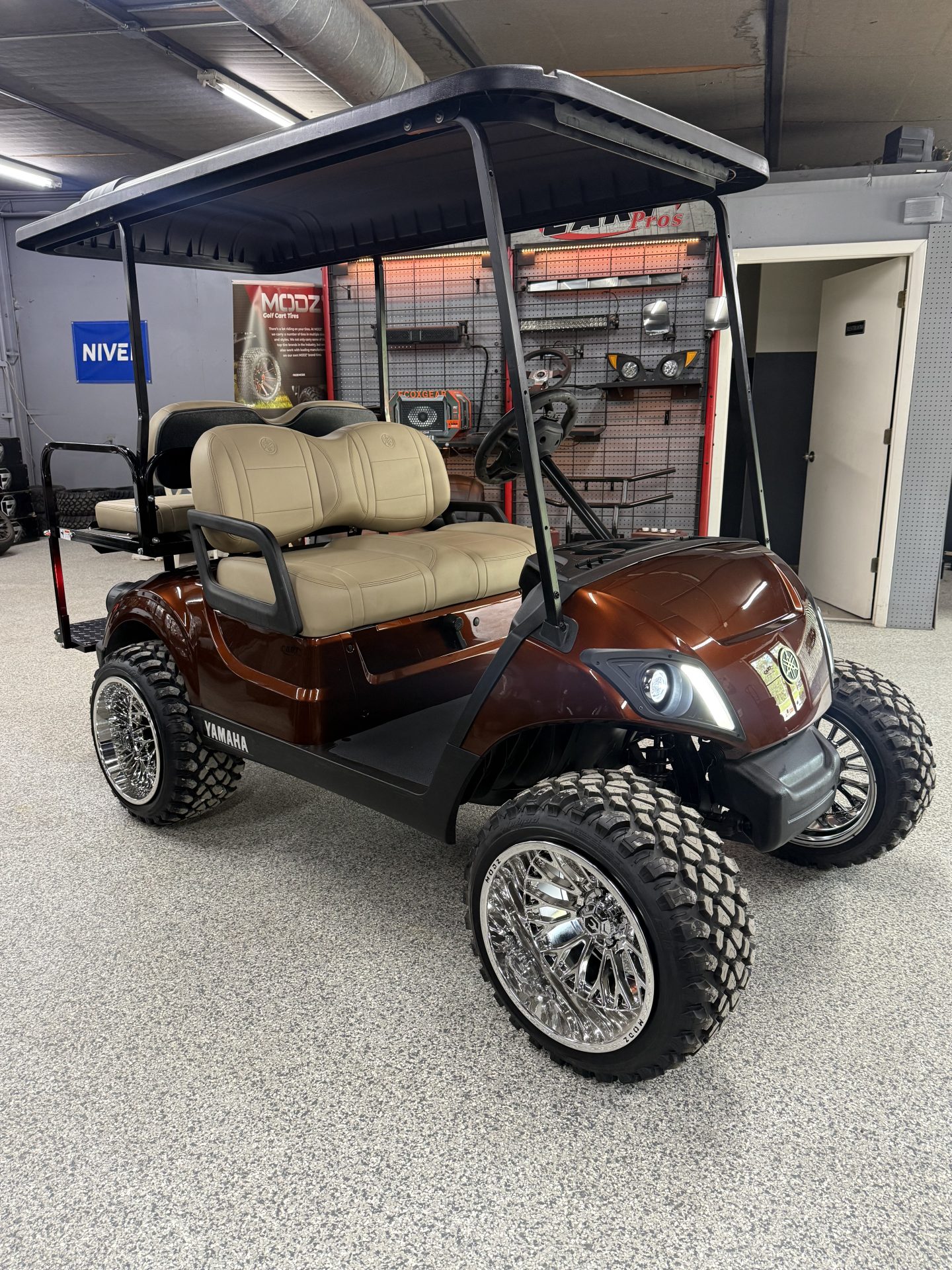

Refurbished 2021 Yamaha Drive 4-Passenger Passenger Transport Cart
-
Condition: Professional Workshop Refurbished / Remanufactured Multi-Passenger Layout
-
Year: 2021 Model Year Base Platform
-
Make/Brand: Yamaha Golf-Car Company
-
Model Line: Drive Series (Drive2 Generation Platform)
-
Power System: 4-Stroke Electronic Fuel Injection (EFI) Gas Engine
-
Fuel Delivery: Electronic Fuel Injection (No Manual Carburetor Mechanicals)
-
Drive Mechanicals: Automatic V-Belt Continuously Variable Transmission (CVT) with Transaxle
The Refurbished 2021 Yamaha Drive is a 4-passenger personal transport CART running a high-efficiency Electronic Fuel Injection gasoline powertrain. This unit has been processed through a comprehensive technical teardown, chassis alignment check, and multi-passenger utility conversion to ensure compliance with strict mechanical guidelines.
The structural foundation of this CART features the HybriCore Chassis, built with robotic-welded automotive-style steel ladder tubing protected via multi-stage full-immersion phosphate cleaning, electro-deposition epoxy primers, and a durable powder coat layering. The exterior body is shaped from molded thermoplastic olefin panels finished in a high-luster polyurethane coating. The seating configuration consists of a front row dual-passenger bench supplemented by a heavy-duty rear-facing 2-passenger seat module.
EFI Powertrain Architecture & Mechanical Control
Yamaha 357cc Low-Emission Engine: This 2021 platform is powered by a Yamaha-manufactured 357cc single-cylinder, 4-stroke overhead valve (OHV) engine featuring a 60-degree inclined cylinder block. The engine develops 11.4 HP (8.5 kW) at 3,500 RPM. This configuration incorporates factory sound-dampening insulation panels to minimize sound pressure outputs during engine operation.
-
Electronic Fuel Injection (EFI): Managed by a solid-state engine control unit that automatically meters air-to-fuel ratios based on atmospheric pressure and engine temperature changes. This setup prevents fuel coagulation during storage and increases thermal efficiency compared to old carbureted systems.
-
Suspension Engineering: Front handling utilizes the Tru-Trak II fully independent automotive-style strut suspension array. The rear axle utilizes an independent strut suspension mechanism to manage the load shifts associated with rear-facing passengers.
-
Mechanical Braking Hardware: Stopping capabilities rely on self-adjusting mechanical rear wheel drum brakes connected directly via steel linkage cables to the heavy-duty floor pedal assembly.
Key Specifications & Technical Profile
| Feature Category | Factory & Refurbished Specification Profile |
| Seating Configuration | 4-Passenger (2 Forward-Facing / 2 Rear-Facing) |
| Chassis Framework | HybriCore Automotive Steel Ladder Frame with Textured Floor Plates |
| Engine Configuration | 357 cc Yamaha-Built Single-Cylinder 4-Stroke OHV |
| Fuel Metering System | Electronic Fuel Injection (EFI) System |
| Lubrication System | Splash-Style Positive Oil Lubrication (1-Litre Sump Capacity) |
| Airstream Filtration | Dual-Stage (Urethane Pre-Cleaner & Pleated Paper Cartridge) |
| Fuel Tank Capacity | 22.0 Litres (5.8 US Gallons) Low-Permeation Internal Tank |
| Maximum Ground Speed | Factory Governed up to 31 km/h (19 mph) |
| Steering Assembly | Self-Compensating Double Reduction Helical Rack-and-Pinion |
| Wheel & Tire Setup | 10-inch or 12-inch Refurbished Wheels // 205/65-10 DOT-Rated Turf Tires |
Dimensions & Manual Configuration Profiles
1. Physical Footprint & Weight Metrics
-
Total Longitudinal Length: 238.0 cm (93.6 inches) Base platform before rear seat step extensions
-
Total Transverse Width: 120.0 cm (47.3 inches)
-
Total Height (With Extended Canopy): 182.0 cm (71.6 inches) to peak of extended roof structure
-
Wheelbase Distance: 164.0 cm (64.4 inches)
-
Front Wheel Track Width: 89.0 cm (35.0 inches)
-
Rear Wheel Track Width: 98.0 cm (38.7 inches)
-
Minimum Ground Clearance: 11.0 cm (4.3 inches) underneath rear transaxle housing
-
Curb Weight Metric (Standard Configuration): 356 kg (785 lbs) Excluding added structural conversion steel
2. Multi-Passenger Conversion Details
-

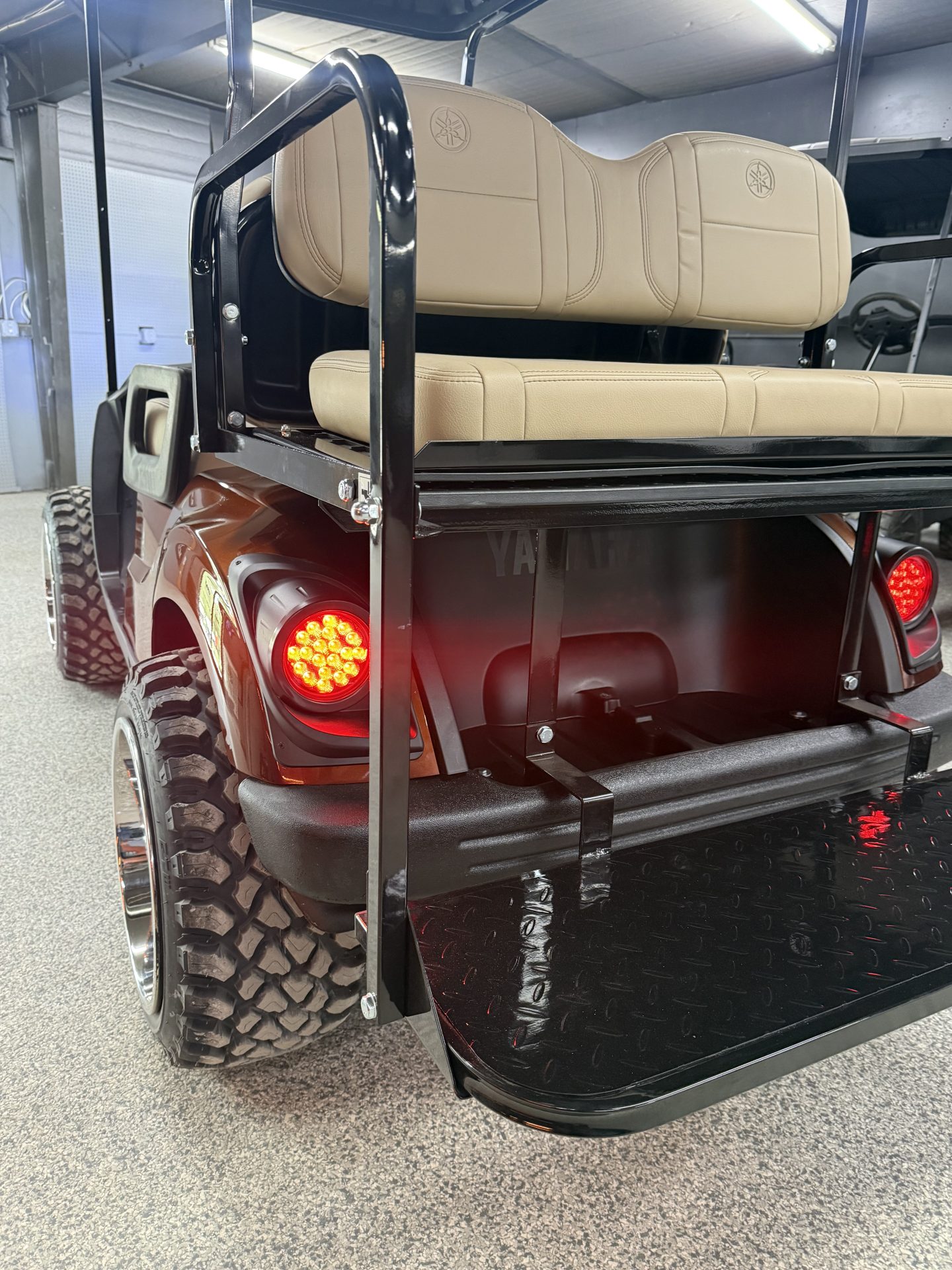

Rear Seat Module Construction: Industrial-grade powder-coated steel sub-frame bolted directly into existing rear structural frame mounts.
-
Flip-Seat Cargo Functionality: The rear seat assembly features a dual-purpose design with a hinged composite panel that folds forward horizontally to establish a flat, non-skid utility cargo deck.
-
Occupant Safety Hardware: Equipped with a textured aluminum or molded composite footrest platform, integrated steel safety grab rails, and structural side hip restraints for rear occupants.
3. Instrumentation & Cabin Trim Utilities
-
Integrated Storage Console: Automotive-style dashboard molding containing four separate cup wells, deep-dish storage compartments, and dual factory-installed USB charging outlets.
-
Seating Materials: Dual-density virgin foam cushioning assemblies wrapped in automotive-grade, UV-treated marine vinyl skin covers fixed to non-moisture absorbent composite backing pans.
-
Canopy Extension: Outfitted with a specialized extended sun top roof built from impact-resistant polypropylene, engineered with perimeter drainage channels to discharge rainwater outward past the rear footrest area.
Refurbishment Standards & Operational Care
This 2021 gas-powered Yamaha Drive has completed standard mechanical refurbishment workflows including engine compression testing, injection nozzle flush routines, replacement of primary and secondary drive belts, replacement of engine oil and spark plugs, alignment of steering linkages, and clearance tuning of the rear mechanical drum brakes. Regular service intervals demand oil changes every 100 operational hours, routine cleaning of the dual-stage air filter, and checking grease points along the front suspension arms.
